If your car has an alternator, chances are it also has an alternator pulley. The alternator pulley is a small wheel that sits on the front of the engine and spins along with the crankshaft. The purpose of the alternator pulley is to keep the belt tight so that it can transfer power from the engine to the alternator.
Over time, however, the alternator pulley can become worn out or damaged and will need to be replaced. Luckily, this is a relatively easy task that most people can do themselves with a few tools and some patience.
- Remove the drive belt from the alternator
- Use a wrench to remove the bolt that secures the pulley to the alternator shaft
- Pull the pulley off of the shaft and set it aside
- Install a new pulley onto the shaft and secure it with a wrench
- Reinstall the drive belt onto the alternator and tighten it according to specifications
How to Replace Alternator's Freewheel Clutch Pulley
How to Remove a Stuck Alternator Pulley
If your alternator pulley is stuck, there are a few things you can do to try and remove it. First, try spraying some WD-40 or another lubricant onto the pulley. This may help loosen it up.
If that doesn’t work, you can try hitting the pulley with a rubber mallet. Be careful not to damage the pulley though. If neither of these methods work, you may need to remove the entire alternator in order to get to the pulley.
Credit: www.instructables.com

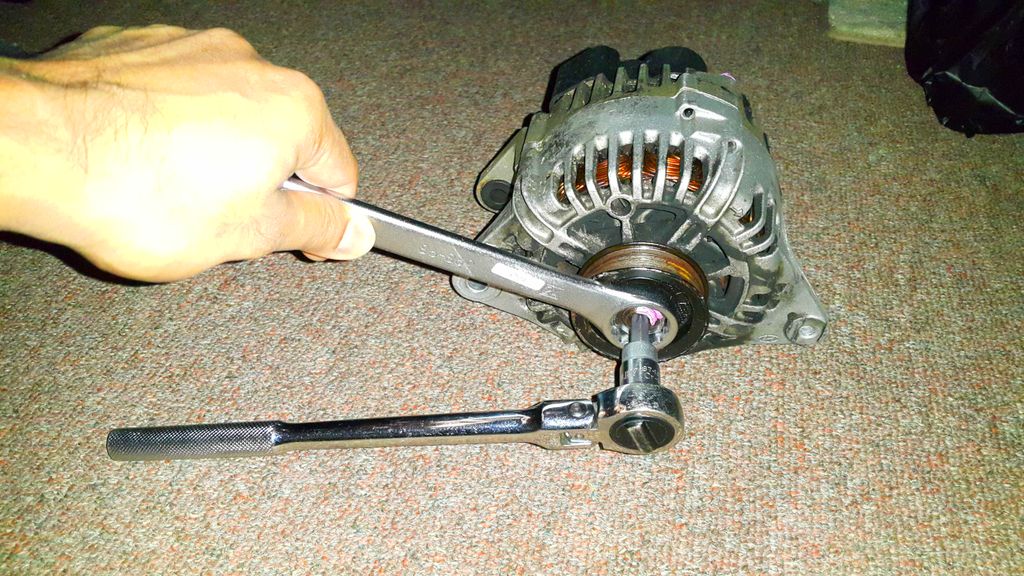

How Do You Take an Alternator Pulley Off?
Assuming you have the right tools for the job, removing an alternator pulley is a relatively straightforward process.
First, disconnect the negative battery cable to prevent any accidental electrical shorts. Next, using an alternator pulley removal tool or a strap wrench, loosen the nut that secures the pulley to the shaft of the alternator.
Once the nut is loose, tapped gently on the side of the pulley with a mallet until it slides off of the shaft.
If your vehicle has an integrated voltage regulator (most newer vehicles do), you will need to remove this before proceeding. To do so, simply unscrew the bolts that secure it to the back of the alternator and lift it away.
With boththe pulley and voltage regulator removed, you should now have clear access to removethe Alternator itself from its mounting bracket.
Can You Replace Just the Pulley on an Alternator?
It’s possible to replace just the alternator pulley, but it’s not recommended. The reason is that the alternator pulley is usually made of plastic and over time, it can wear out or become damaged. If you replace just the pulley, there’s a chance that the new one will also become damaged or worn out quickly.
It’s better to replace the entire alternator assembly, which includes the pulley, to ensure long-lasting results.
How Do You Remove a Decoupler Pulley from an Alternator?
Assuming you would like tips on removing a decoupler pulley from an alternator:
Tools Needed:
– Impact wrench or socket and ratchet set (depending on bolt size)
– Breaker bar (if needed)
– Shop towels
– New decoupler pulley (if needed)
– Alternator belt (if needed)
First, disconnect the negative battery cable to prevent any electrical shorts. Next, locate the alternator and identify the decoupler pulley.
The decoupler pulley is usually located at the bottom of the alternator, closest to where the engine is. Once you have found the decoupler pulley, use your impact wrench or socket and ratchet set to remove the bolts holding it in place. If the bolts are very tight, you may need to use a breaker bar for additional leverage.
With all of the bolts removed, carefully pull off the old decoupler pulley being careful not to damage anything else on the alternator. If you are installing a new decoupler pulley, line it up with the holes in the alternator and hand thread in all of the bolts before tightening them down with your impact wrench or socket and ratchet set. Reconnect your negative battery cable when finished.
How Do You Tighten a Pulley Nut on a Alternator?
Assuming you are asking how to replace or tighten an alternator pulley nut, the process is as follows:
1.Using a socket wrench, remove the retaining bolt and washer from the back of the alternator.
2.Remove the old drive belt from around the alternator pulley.
If it is difficult to remove, you may need to use a belt breaker tool.
3.Install the new drive belt around the alternator pulley. Make sure the belt is tight by pulling on it with your hand.
4.Reinstall the retaining bolt and washer on the back of the alternator, and tighten securely with your socket wrench.
Conclusion
In order to remove an alternator pulley, first disconnect the negative terminal of the battery. Next, using a wrench, loosen the nut that secures the pulley to the shaft. Once the nut is loose, tap on the edge of the pulley with a hammer until it slides off of the shaft.
Finally, clean off any debris from the shaft and install a new pulley before reconnecting the negative terminal of the battery.
